Geometry-Aware Hashing of GeoJSON objects

While writing a comparator for GeoJSON Feature Collections I encountered an interesting problem:

Whenever you want to compare two (or more) huge lists with each other, you quickly end up using hashes.

You can associate your objects to an hash, put them in a hash map, and lookup values (in this case, duplicates) in O(1) time, resulting in far less computationally expensive operations.

In GeoJSON each FeatureCollection (you see this a map, with added Points, Lines, and Areas) contains Features, which contain Geometry, which in the case of LineString and Polygon are a set of coordinates.

Hashing produces a (expected) unique value for one object. But the underlying information that a Geometry encodes is not a fixed-set of coordinates, but rather an area (Polygon) or a line (Line String).

A single area (or line) can be expressed in multiple sets of Coordinates, since the direction or order of the underlying vectors are not considered, but the area which they span in the end.

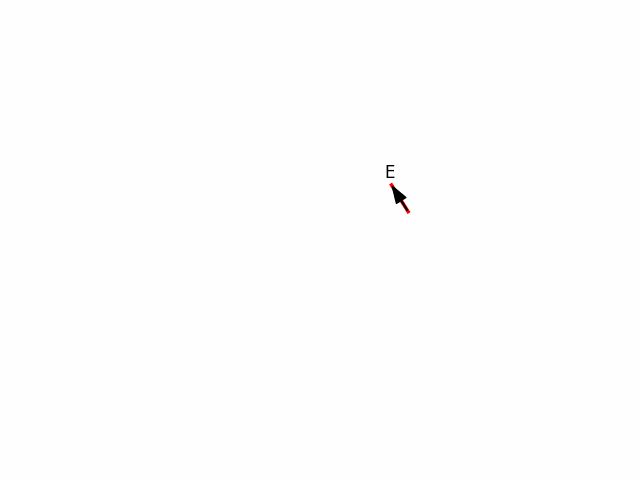

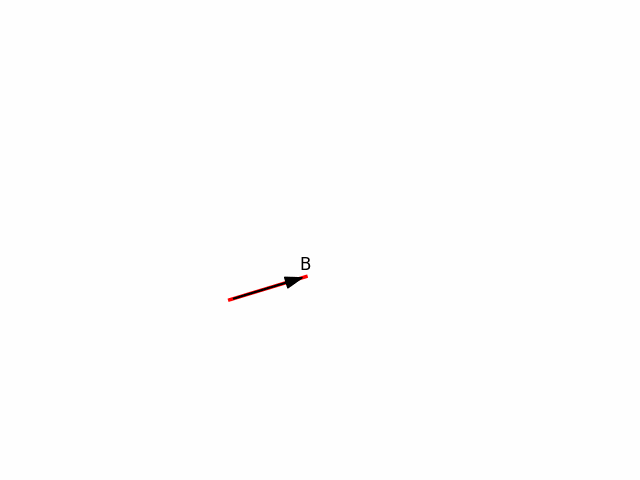

Think of this polygon [A, B, C, D, E, F, A]

It spans the same exact area as this Polygon [D, E, F, A, B, C, D]

In the case of polygons, you can shift your cyclical coordinates however you want.

In LineStrings you see similiar behaviour . You can read them palindromically.

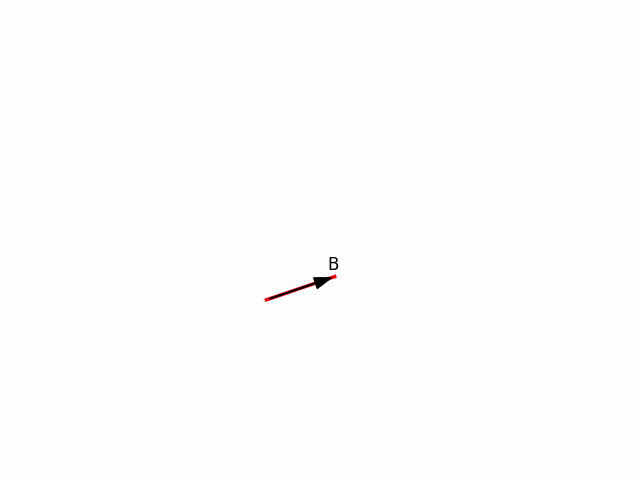

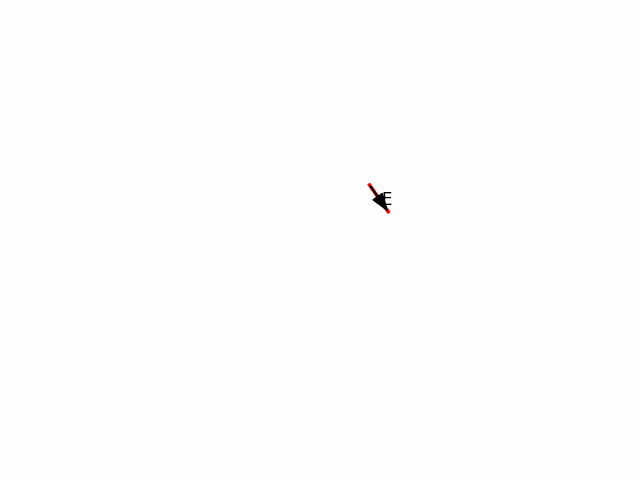

[A, B, C, D, E]

[E, D, C, B, A]

If your hashing function needs to provide a hash, unique to the shape of your Geometry, not to the particular set of coordinates, you need to be able to consistenly choose a starting point.

The actual part that gets hashed should stay the same, whether or not you enter [A, B, C, D, E, A] or [C, D , E, A, B, C] or any other mutations.

To do this, we have to consistenly choose a starting point. After thinking far too long about how I can sort coordinates reliability, I chose the easy way out:

package dev.altayakkus.geoDiff
import dev.altayakkus.geoDiff.enums.GeometryType
import dev.altayakkus.geoDiff.utils.Hashing
import org.locationtech.jts.geom.Coordinate
import org.locationtech.jts.geom.GeometryFactory
import org.locationtech.jts.geom.LinearRing

sealed class Geometry() {
    abstract val type: GeometryType

    data class Polygon(val coordinates: List<List<List<Double>>>) : Geometry() {
        init {
            for (ring in coordinates) {
                if (ring.size < 4) {
                    throw IllegalArgumentException("A polygon must have at least 4 coordinates.")
                }

                if (ring.first() != ring.last()) {
                    throw IllegalArgumentException("The first and last coordinates must be the same.")
                }

                val uniqueCoords = ring.dropLast(1).toSet()
                if (uniqueCoords.size != ring.size - 1) {
                    throw IllegalArgumentException("There should be no duplicate coordinates except the first and last.")
                }
            }
        }
        override fun equals(other: Any?): Boolean {
            if (this === other) return true
            if (other !is Geometry.Polygon) return false

            // TODO: Support exterior ring items (RFC 7946 3.1.6). Now we throw them away.
            return Hashing.reorderCoordinates(other.coordinates.flatten()) == Hashing.reorderCoordinates(coordinates.flatten())
        }

        override fun hashCode(): Int {
            var result = type.hashCode()
            // Consistent, area-aware reordering
            // TODO: Support exterior ring items (RFC 7946 3.1.6). Now we throw them away.
            val reorderedCoords = Hashing.reorderCoordinates(coordinates.flatten())

            for (coordinate in reorderedCoords) {
                val coordinateHash = coordinate.hashCode()
                result = 31 * result + coordinateHash
            }

            return result
        }

        fun toJts(): org.locationtech.jts.geom.Geometry {
            val geometryFactory = GeometryFactory()

            val jtsCoordinates = coordinates.flatten().map { coord ->
                Coordinate(coord[0], coord[1])
            }.toTypedArray()

            val shell: LinearRing = geometryFactory.createLinearRing(jtsCoordinates)

            return geometryFactory.createPolygon(shell, null)
        }

        override val type: GeometryType = GeometryType.Polygon
    }

    data class LineString(val coordinates: List<List<Double>>) : Geometry() {
        init {
            if (coordinates.size < 2) {
                throw IllegalArgumentException("A line string must have at least 2 coordinates.")
            }

            val uniqueCoords = coordinates.toSet()
            if (uniqueCoords.size != coordinates.size) {
                throw IllegalArgumentException("There should be no duplicate coordinates.")
            }
        }
        override fun equals(other: Any?): Boolean {
            if (this === other) return true
            if (other !is Geometry.LineString) return false

            return Hashing.reorderCoordinates(other.coordinates, lineString = true) == Hashing.reorderCoordinates(coordinates, lineString = true)
        }
        override fun hashCode(): Int {
            var result = type.hashCode()
            // Consistent, area-aware reordering
            val reorderedCoords = Hashing.reorderCoordinates(coordinates, lineString = true)

            for (coordinate in reorderedCoords) {
                val coordinateHash = coordinate.hashCode()
                result = 31 * result + coordinateHash
            }

            return result
        }

        fun toJts(): org.locationtech.jts.geom.Geometry {
            val geometryFactory = GeometryFactory()

            val jtsCoordinates = coordinates.map { coord ->
                Coordinate(coord[0], coord[1])
            }.toTypedArray()

            return geometryFactory.createLineString(jtsCoordinates)
        }

        override val type: GeometryType = GeometryType.LineString
    }

}

This function returns the same coordinate for all mutations.

Now we can override our hashCode() function

package dev.altayakkus.geoDiff
import dev.altayakkus.geoDiff.enums.GeometryType
import dev.altayakkus.geoDiff.utils.Hashing
import org.locationtech.jts.geom.Coordinate
import org.locationtech.jts.geom.GeometryFactory
import org.locationtech.jts.geom.LinearRing

sealed class Geometry() {
    abstract val type: GeometryType

    data class Polygon(val coordinates: List<List<List<Double>>>) : Geometry() {
        init {
            for (ring in coordinates) {
                if (ring.size < 4) {
                    throw IllegalArgumentException("A polygon must have at least 4 coordinates.")
                }

                if (ring.first() != ring.last()) {
                    throw IllegalArgumentException("The first and last coordinates must be the same.")
                }

                val uniqueCoords = ring.dropLast(1).toSet()
                if (uniqueCoords.size != ring.size - 1) {
                    throw IllegalArgumentException("There should be no duplicate coordinates except the first and last.")
                }
            }
        }
        override fun equals(other: Any?): Boolean {
            if (this === other) return true
            if (other !is Geometry.Polygon) return false

            // TODO: Support exterior ring items (RFC 7946 3.1.6). Now we throw them away.
            return Hashing.reorderCoordinates(other.coordinates.flatten()) == Hashing.reorderCoordinates(coordinates.flatten())
        }

        override fun hashCode(): Int {
            var result = type.hashCode()
            // Consistent, area-aware reordering
            // TODO: Support exterior ring items (RFC 7946 3.1.6). Now we throw them away.
            val reorderedCoords = Hashing.reorderCoordinates(coordinates.flatten())

            for (coordinate in reorderedCoords) {
                val coordinateHash = coordinate.hashCode()
                result = 31 * result + coordinateHash
            }

            return result
        }

        fun toJts(): org.locationtech.jts.geom.Geometry {
            val geometryFactory = GeometryFactory()

            val jtsCoordinates = coordinates.flatten().map { coord ->
                Coordinate(coord[0], coord[1])
            }.toTypedArray()

            val shell: LinearRing = geometryFactory.createLinearRing(jtsCoordinates)

            return geometryFactory.createPolygon(shell, null)
        }

        override val type: GeometryType = GeometryType.Polygon
    }

    data class LineString(val coordinates: List<List<Double>>) : Geometry() {
        init {
            if (coordinates.size < 2) {
                throw IllegalArgumentException("A line string must have at least 2 coordinates.")
            }

            val uniqueCoords = coordinates.toSet()
            if (uniqueCoords.size != coordinates.size) {
                throw IllegalArgumentException("There should be no duplicate coordinates.")
            }
        }
        override fun equals(other: Any?): Boolean {
            if (this === other) return true
            if (other !is Geometry.LineString) return false

            return Hashing.reorderCoordinates(other.coordinates, lineString = true) == Hashing.reorderCoordinates(coordinates, lineString = true)
        }
        override fun hashCode(): Int {
            var result = type.hashCode()
            // Consistent, area-aware reordering
            val reorderedCoords = Hashing.reorderCoordinates(coordinates, lineString = true)

            for (coordinate in reorderedCoords) {
                val coordinateHash = coordinate.hashCode()
                result = 31 * result + coordinateHash
            }

            return result
        }

        fun toJts(): org.locationtech.jts.geom.Geometry {
            val geometryFactory = GeometryFactory()

            val jtsCoordinates = coordinates.map { coord ->
                Coordinate(coord[0], coord[1])
            }.toTypedArray()

            return geometryFactory.createLineString(jtsCoordinates)
        }

        override val type: GeometryType = GeometryType.LineString
    }

}

Note: The equals function override actually checks if the coordinates are the same, because our hashing can lead to collisions

package dev.altayakkus.geoDiff

fun main() {
    val a = listOf(34.21, 2.78)
    val b = listOf(3458.32, 2131.23)
    val c = listOf(0.0, 23.11)
    val d = listOf(0.3432, 3.0)

    val polygonCoordinates1 = listOf(
        listOf(a, b, c, d, a)
    )
    val polygonCoordinates2 = listOf(
        listOf(c, d, a, b, c)
    )

    val polygonGeometry1 = Geometry.Polygon(polygonCoordinates1)
    val polygonGeometry2 = Geometry.Polygon(polygonCoordinates2)
    println(polygonGeometry1 == polygonGeometry2)
    // outputs: true


    val lineStringCoordinates1 = listOf(
        a, b, c, d
    )
    val lineStringCoordinates2 = listOf(
        d, c, b, a
    )

    val lineStringGeometry1 = Geometry.LineString(lineStringCoordinates1)
    val lineStringGeometry2 = Geometry.LineString(lineStringCoordinates2)
    println(lineStringGeometry1 == lineStringGeometry2)
    // outputs: true
}
